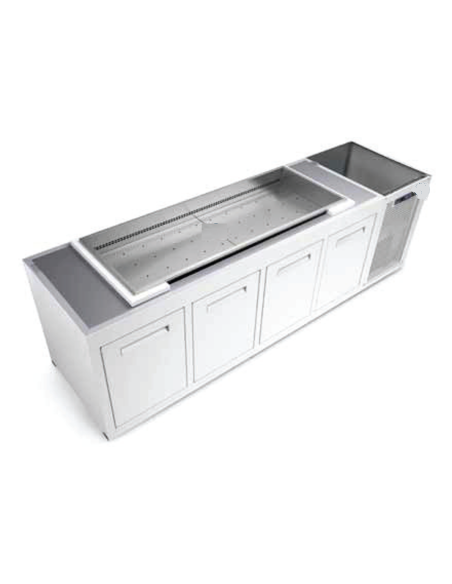

Built-in hood - Refrigerated - With tub - N. 3 doors - Dimensions cm 200 x 68.5 x 77 h

Typology

Options

+ ACCESSORIES


Recessed hood EY129196-79

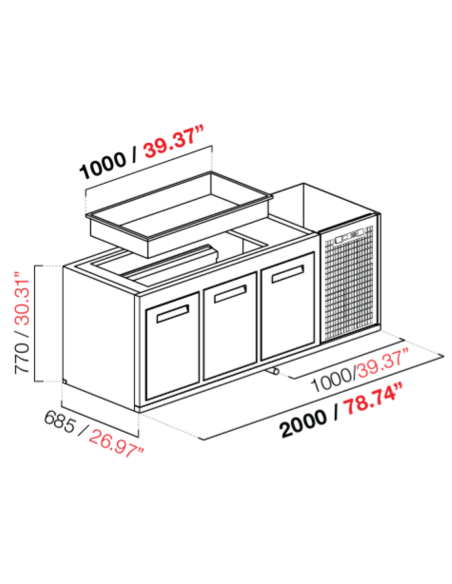

Dimensions product cm 200 x 68.5 x 77 h
Composition N.3 doors
Norma CE
Warranty 12 months
GENERAL FEATURES
Insulated single block with HFO Solstice LBA Low GWP expansion; inner walls and stainless steel bottom AISI 304 18/10 finish 2B; external side sides in prepainted white sheet, external backrest in galvanized sheet.
Door compartment with commercial size (603x444 mm). A grey plastified wire grid for each compartment, in a fixed position.
Front of the cell in prepainted white sheet.
Electronic control panel
Engine compartment with protection grid in white prepainted sheet.
Refrigerated tank in the cell used for refrigeration, made of stainless steel Scotch-brite finish
The tank is recessed into the ventilated cell
The tank is equipped with drain for cleaning and evacuation of liquids.
The floor on which the tank should be 30 mm high for the correct operation of the refrigeration system
The cell control panel is equipped with general button for managing the cell coolant system and second button for managing the tank refrigeration
REFRIGERATION
VENTILATE REFRIGERATION: Refrigeration system consisting of airtight compressor, condenser with copper tube and air cooled aluminum fins with fan, evaporator with copper pipe and aluminium fins powered by capillary. Condenser unit on board protected by a special grid. Electronic control panel. Ventilated refrigeration with uniform air distribution through a special conveyor located above the evaporator. Temperature +4 exercise°C/+°C. Test 32°C / 60% U.R. environment. The condensation discharge is housed in a special funnel on the bottom of the tank to avoid water leaks.

*TEMPERATURE
*Positiva*
*LENGTH
*200 cm*
* DEPTH'
*68.5 cm *
*HEIGHT
*77 cm *
